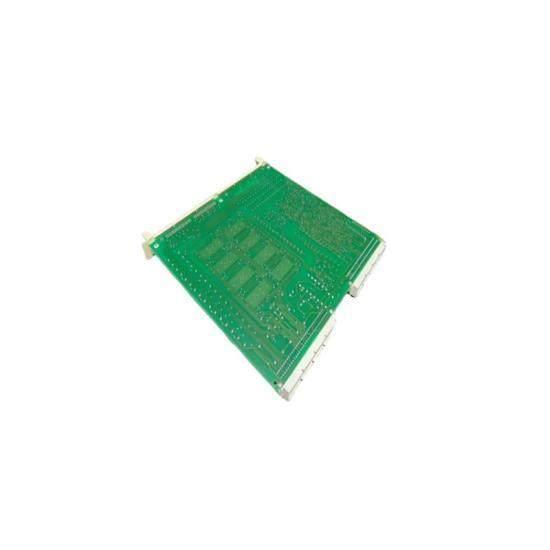

The ABB YB56103-BD/1 PC Board is a high-performance digital input/output module designed for industrial control systems, offering reliable data processing and enhanced system efficiency.
home
The ABB YB56103-BD/1 PC Board is a high-performance digital input/output module designed for industrial control systems, offering reliable data processing and enhanced system efficiency.
open
close
Operating Voltage:24V DC
Input Current (Max):50mA per channel
Output Current (Max):200mA per channel
Number of Channels:16
Communication Interface:RS-485
Environmental Temperature Range:-25°C to +60°C
Storage Temperature Range:-40°C to +70°C
Dimensions:100mm x 50mm
Weight:150g
The ABB YB56103-BD/1 PC Board is meticulously engineered to deliver unparalleled performance in industrial automation applications. This digital I/O module is equipped with 16 input channels and 16 output channels, providing robust connectivity for various industrial processes.
Featuring a compact design measuring 14.5 x 11 x 3.5 cm and weighing just 0.24 kg, it offers flexibility in installation. Its aluminum alloy construction ensures durability and efficient heat dissipation.
With support for DC 24V operating voltage and an extended temperature range from -20°C to +70°C, this board is suitable for a wide range of industrial environments. It utilizes Modbus TCP/IP communication protocol for seamless integration with other systems.
The YB56103-BD/1 board includes 24 connections for enhanced connectivity options, facilitating easy connection to various devices and components. The SPDT relay type ensures reliable switching performance, making it ideal for critical control applications.
This module is specifically designed for panel mounting, ensuring a secure and stable installation within industrial control panels. Its combination of advanced features, compact size, and reliability makes it an excellent choice for optimizing industrial automation systems.
