Communication Protocol:TCP/IP, UDP, Multicast

Protocol Support:RFC1006

Network Interface:2x RJ45 connection for LAN with 10/100 Mbit/s

Device Integration:PROFINET IO device integrated 2-port switch ERTEC 200

Software Compatibility:S7 communication (server)

Initialization Method:LAN based initialization

Module Replacement:Replacement without PG

Diagnostics:SNMP diagnostics

Net Weight:0.299 kg

Packaging Dimensions:13.20 x 14.80 x 5.10 cm

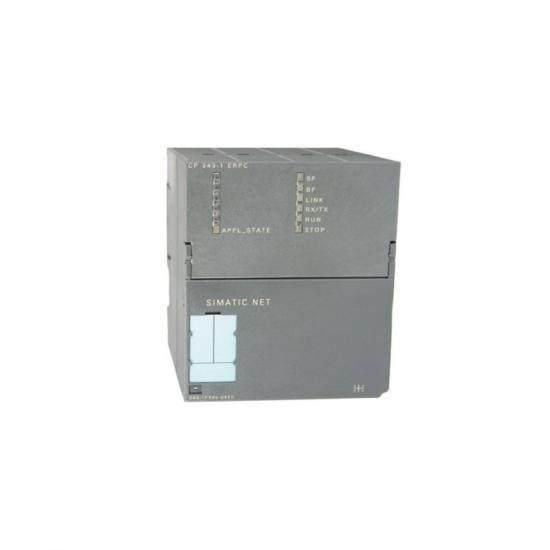

    The Siemens SIMATIC NET CP 343-1 FX Communication Processor offers enhanced reliability and efficiency in industrial settings. Its compact design integrates seamlessly into existing SIMATIC S7-300 systems, enabling robust data transmission over industrial Ethernet networks.

    This processor supports multiple protocols, including TCP/IP and UDP, which are essential for connecting various devices in a factory floor. Its compatibility with multicast ensures optimized data flow, reducing network congestion and improving overall performance.

    Featuring SEND/RECEIVE functionality with or without RFC1006, the CP 343-1 FX allows for flexible data exchange. The Fetch/Write capability facilitates easy data retrieval and storage, streamlining manufacturing processes.

    With integrated PROFINET IO device and a 2-port switch ERTEC 200, the processor ensures a stable and efficient network connection. The inclusion of SNMP diagnostics provides proactive monitoring, enabling quick issue resolution and maintenance.

    The CP 343-1 FX is designed for ease of use and maintenance. It can be replaced without the need for a programmable graphic operator (PG), simplifying the process for maintenance personnel. Additionally, its LAN initialization feature ensures quick setup and configuration.
