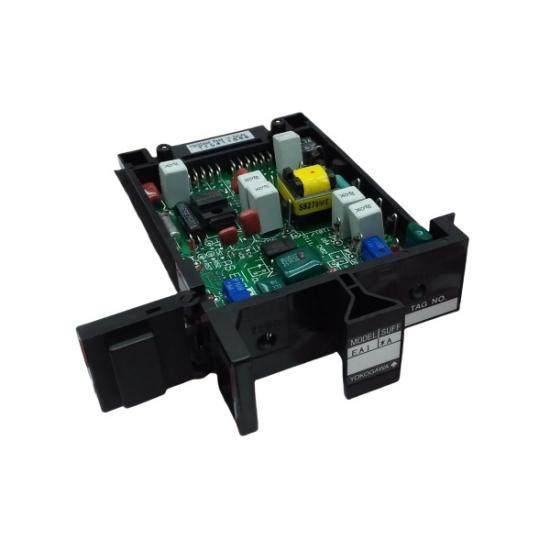

The YOKOGAWA EA1*A Signal Conditioner Card is a specialized module designed to enhance signal integrity in industrial control systems. It ensures accurate data transmission by conditioning input signals to match the system’s requirements.
home
The YOKOGAWA EA1*A Signal Conditioner Card is a specialized module designed to enhance signal integrity in industrial control systems. It ensures accurate data transmission by conditioning input signals to match the system’s requirements.
open
close
Operating Temperature:-20°C to +70°C
Power Supply Voltage:DC 9V ± 10%
Input Signal Range:0 to 10 V DC, 4 to 20 mA
Output Signal Range:0 to 10 V DC, 4 to 20 mA
Input Impedance:2 kΩ
Output Impedance:1 kΩ
Accuracy:±0.05%
Operating Humidity:0 to 95% non-condensing
Dimensions:85 mm x 51 mm x 32 mm
Weight:Approximately 50 g
The Yokogawa EA1*A Signal Conditioner Card is engineered for high performance in industrial automation environments. Its compact design integrates seamlessly into diverse control systems, enhancing signal quality and reliability.
This card supports a wide range of input signals, including 4 to 20 mA and 0 to 10 V DC, ensuring compatibility with a broad spectrum of sensors and instruments.
Featuring a robust IEC 61010-1 safety standard rating, the EA1*A ensures operational safety in harsh industrial conditions. Its low power consumption contributes to energy efficiency without compromising performance.
Equipped with an RS-485 Modbus RTU interface, this card facilitates easy integration with existing control systems, enabling remote monitoring and control.
The EA1*A is meticulously crafted with precision and durability in mind, making it a reliable choice for applications requiring high accuracy and dependability.
