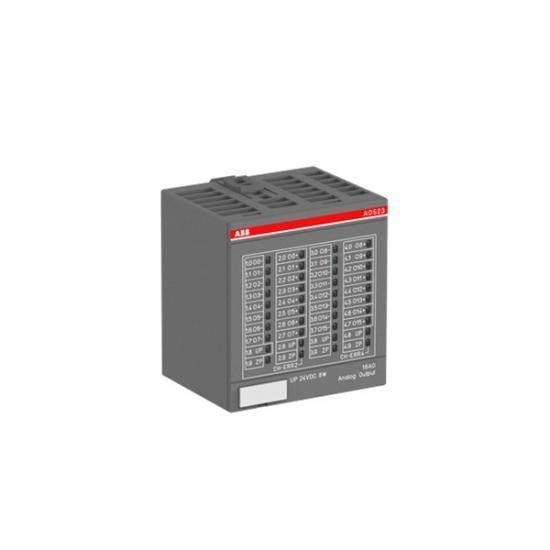

The ABB AO523 Analog Output Module is designed for precision control applications in industrial automation, ensuring reliable and accurate signal output across various process control scenarios.
home
The ABB AO523 Analog Output Module is designed for precision control applications in industrial automation, ensuring reliable and accurate signal output across various process control scenarios.
WhatsApp
Brand:ABB
Model:AO523
Type:Analog Output Module
Compatibility:Compatible with ABB PLC’s
Operating Temperature Range:-20°C to +55°C
Power Consumption:Less than 20mA at 24VDC
Output Current:0-20mA or 4-20mA
Accuracy:+/- 0.5%
Response Time:Less than 5ms
Enclosure Rating:IP20
Installation Type:Panel-Mount
Connection:DIN Rail
Dimensions:96mm x 96mm x 44mm
Weight:Approximately 120g
The ABB AO523 Analog Output Module is engineered for optimal performance in a wide range of industrial settings, ensuring reliable and efficient control over actuators and sensors.
With its compact design and modular architecture, this output module seamlessly integrates into various PLC systems, enhancing system scalability and adaptability to meet evolving industrial needs.
Featuring a robust current capacity of 1A, the AO523 can handle demanding loads, making it suitable for applications requiring precise control over actuators in harsh environments.
Supporting a broad signal range from -10V to +10V or 0V to 10V, the module ensures compatibility with diverse sensor outputs, facilitating accurate data conversion and transmission.
Equipped with a modular bus interface, the AO523 offers flexible communication options, enabling seamless integration with other ABB products and third-party systems for enhanced system efficiency and control.
Designed for ease of installation, the AO523 is a plug-in module, reducing setup time and complexity. Its compact size (100mm x 100mm x 10mm) and lightweight (0.1kg) make it ideal for space-constrained industrial setups.
