Control Power Range:50-300 VDC / 40-265 VAC

Digital/Switch Inputs:6 optically isolated

Recordable Events:512

Fuse:3.15 A H 250 V

Ground Current Input Frequency:20 to 100 Hz

Maximum Altitude:2000 m (max)

Pollution Degree:II

RTD Inputs:12 (optional)

Metering Package:Optional

Fiber Optic Port:Optional

Chemical Environment Option:Harsh Chemical Environments

Insulation Class:I

Phase Current Inputs:1 A and 5 A secondary

Weight:Approx. 10 lbs

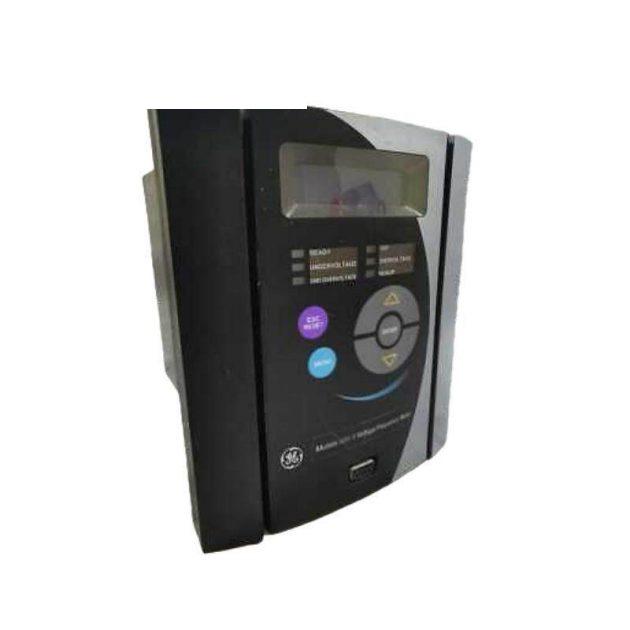

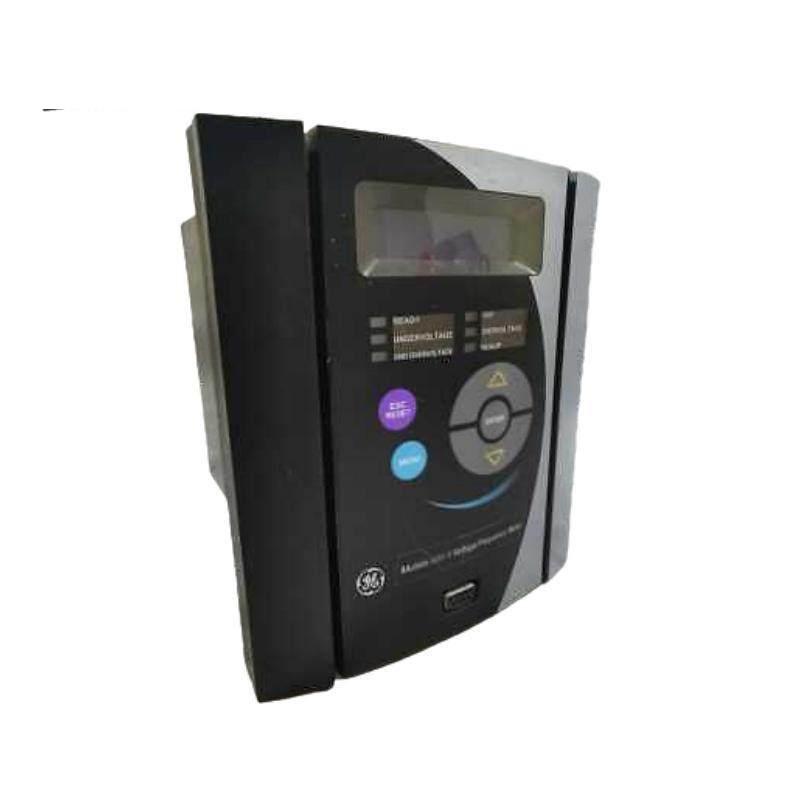

    The GE 369-HI-R-M-F-E-H-E is a cutting-edge Motor Management Relay engineered for industrial settings where reliability and precision are paramount. This versatile relay supports a wide range of control power from 50-300 VDC and 40-265 VAC, ensuring compatibility across various industrial applications.

    Equipped with six optically isolated digital or switch inputs, this relay can monitor multiple conditions simultaneously, enhancing operational efficiency. With the capability to record up to 512 events, it provides detailed insights into system performance and maintenance needs. The inclusion of a fuse rated at 3.15 A H 250 V ensures robust protection against electrical surges.

    Designed for environments requiring precise current monitoring, the ground current input frequency ranges from 20 to 100 Hz, supporting a variety of motor configurations. The relay is suitable for use up to a maximum altitude of 2000 meters, making it ideal for industrial facilities located at higher elevations. Its pollution degree rating of II further ensures reliable operation in harsh industrial conditions.

    This relay supports multiple RTD inputs, including 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, and 10 Ω copper, providing flexibility for different temperature measurement requirements. Additionally, the phase current inputs include both 1 A and 5 A secondary options, catering to diverse motor sizes and types.

    With its enhanced display and optional metering package, the GE 369-HI-R-M-F-E-H-E delivers real-time diagnostics and operational data, enabling proactive maintenance and troubleshooting. Optional fiber optic ports are available for secure and efficient data communication in industrial networks. Overall, the GE 369-HI-R-M-F-E-H-E is a comprehensive solution designed to meet the stringent demands of modern industrial control systems.
