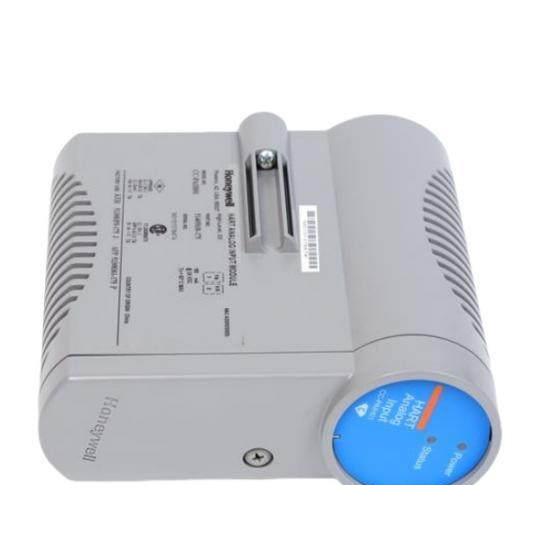

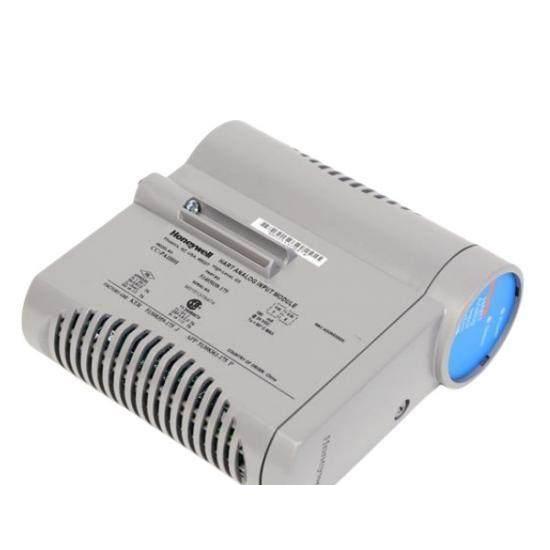

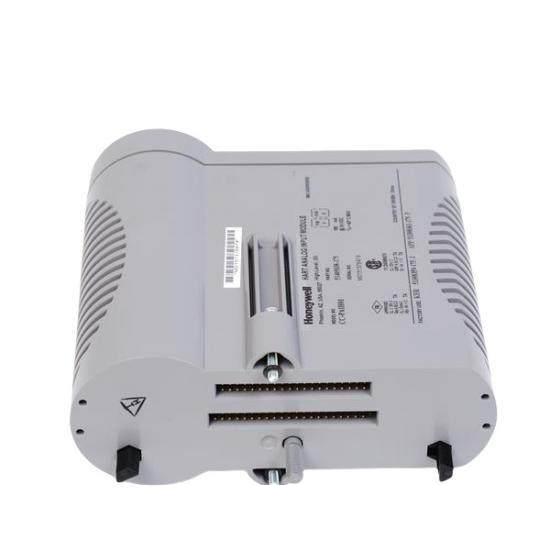

The Honeywell CC-PAIH01 is an advanced high-level analog input module designed for precise data acquisition in industrial automation systems, ensuring reliable and accurate signal processing.
home
The Honeywell CC-PAIH01 is an advanced high-level analog input module designed for precise data acquisition in industrial automation systems, ensuring reliable and accurate signal processing.
open
close
Operating Range:4-20 mA
Input Voltage:12-36 VDC
Current Consumption:≤ 20mA
Operating Temperature:-40°C to +85°C
Environmental Rating:IP65
Connection Type:BNC Connector
Power Supply Compatibility:Multiple DC power supplies
The Honeywell CC-PAIH02 is a critical component for any industrial control system requiring high precision and reliability in data acquisition. Its wide input range (-10 V to +10 V) ensures compatibility with various sensors and measurement devices.
Equipped with an advanced 12-bit resolution, this module provides exceptional accuracy in readings, making it suitable for applications where minute variations must be detected. The high sampling rate of 10 kHz ensures that dynamic processes can be captured without missing critical data.
Designed to operate in extreme conditions, the CC-PAIH02 is rated for temperatures from -40°C to +85°C and features an IP65 protection rating, ensuring it can withstand dust and water ingress. This makes it ideal for use in harsh industrial environments.
Featuring a robust RS-485 communication interface, the module supports long-distance data transmission with minimal signal degradation. This ensures reliable data transfer even over extended distances, enhancing system performance.
Compact yet powerful, the CC-PAIH02 is easy to integrate into existing systems. Its size (152 x 101 x 94 mm) and lightweight design (0.3 kg) make installation straightforward and space-efficient, minimizing setup time and costs.
