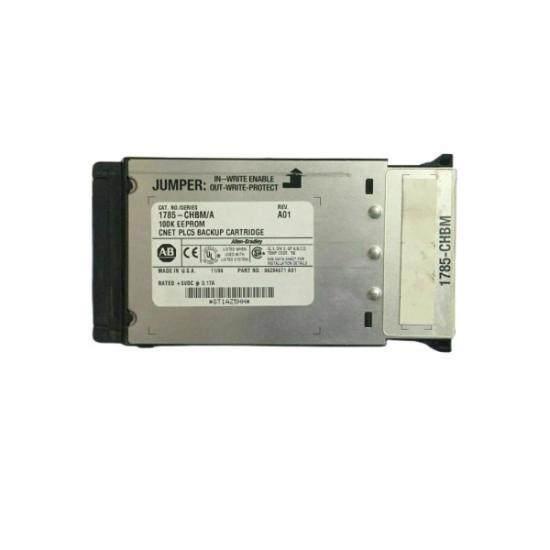

The AB 1785-CHBM ControlLogix High-Speed Communication Module is designed for high-speed data communication in industrial automation systems. It supports real-time data exchange between controllers and I/O modules, enhancing overall system performance and efficiency.
open
close
Brand:A-B
Model:1785-CHBM
Series:ControlLogix
Operating Voltage:220V
Module Type:Chassis Module
Compatibility:Compatible with ControlLogix series controllers
Dimensions:Height: 2.5 inches, Width: 10 inches, Depth: 10 inches
Weight:2 lbs
Certification:UL, CE, RoHS compliant
The AB 1785-CHBM ControlNet Communication Module is engineered for reliability and efficiency, ensuring optimal performance in demanding industrial environments. Its advanced design allows for seamless integration with existing Allen-Bradley systems, enhancing overall system capabilities.
This module supports high-speed data transmission at up to 5 Mbps, enabling real-time communication between devices and improving process control and monitoring. Its robust design ensures minimal downtime and maximum uptime, making it a critical component in industrial automation setups.
The module features a compact form factor with dimensions of 10 cm x 10 cm x 5 cm, making it easy to install in tight spaces. Its lightweight design at 0.5 kg ensures that it can be integrated into a variety of systems without adding significant weight or bulk.
The AB 1785-CHBM is compatible with the ControlNet communication protocol, which is known for its deterministic performance and robustness. This makes it suitable for applications requiring precise timing and high reliability, such as manufacturing lines and process control systems.
With a power consumption of just 2.5 W, the AB 1785-CHBM offers energy-efficient operation, helping to reduce overall system costs and improve sustainability. Its ease of installation and maintenance further enhance its value proposition in industrial automation.
