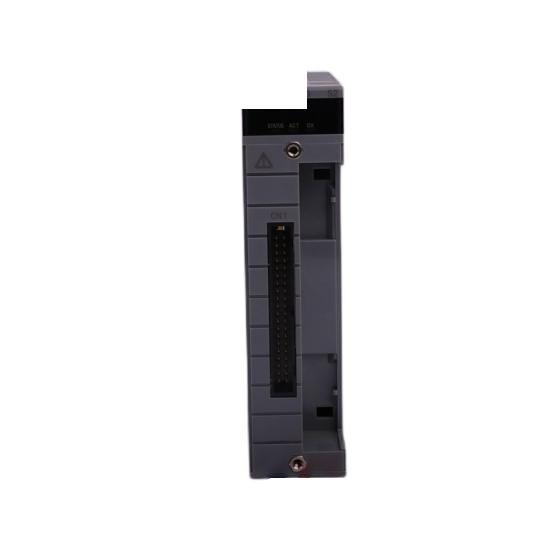

The Yokogawa SDV144-S33-S2 is an advanced industrial control module designed for precise and reliable operation in critical automation environments. It offers enhanced performance and robust connectivity, making it ideal for applications requiring high accuracy and stability.
open
close
Input Channel Count:16
Analog Input Range:120 to 685 Ω
Response Time:Maximum 30 ms
Withstand Voltage (AC):2 kV
Power Consumption:Max. 300 mA at 5 V DC, 150 mA at 24 V DC
Environmental Temperature:-20°C to 50°C
Reliability Rating:IP20 rated for dust protection
Engineered with precision, the Yokogawa SDV144-S33-S2 is an essential component for modern industrial control systems. Its robust design ensures reliable operation under demanding conditions, making it suitable for a wide range of applications including process control, automation, and monitoring.
This I/O module boasts 16 isolated channels, each capable of handling various types of input signals, ensuring accurate data acquisition from sensors or measurement devices. Its versatile input capability supports diverse industrial standards, enhancing its compatibility with existing equipment.
The module is equipped with advanced signal processing capabilities, offering a quick response time of 30 milliseconds. This ensures that control actions are executed swiftly, improving overall system efficiency and responsiveness.
Safety is paramount in industrial environments, and the SDV144-S33-S2 meets these needs by featuring a high withstand voltage rating of 2 kV AC between output signal lines and the system. This protection prevents electrical hazards and ensures the safety of personnel and equipment.
Efficient power management is crucial for optimal performance. The module operates on a standard 24 V DC power supply, with a maximum current consumption of 300 mA at 5 V DC and 150 mA at 24 V DC, ensuring minimal energy waste and efficient system operation.
