Number of Toggle Switches:8

Number of Fuses:36

Signal Wire Terminals:4

OK LEDs:36

10-Pin Connector:Yes

Blown Fuse Indication Method:Quick LED display

Operating Voltage Range:24-60V DC

Dimensions (WxHxD):178mm x 94mm x 48mm

Weight:0.7kg

Compatibility:GE‘s Mark V Series Turbine Control Systems

Temperature Range:-20°C to +55°C

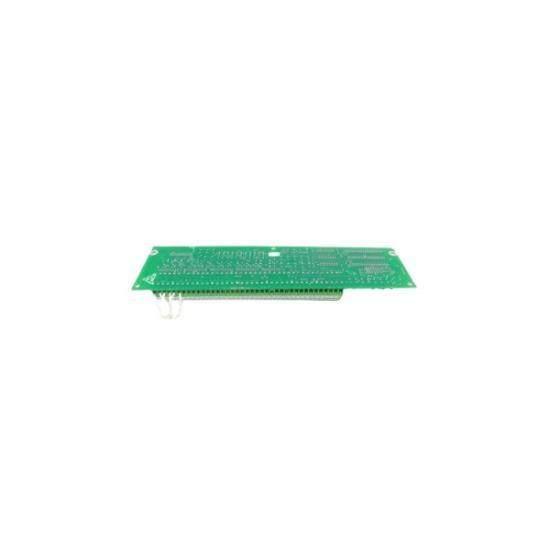

    Engineered for durability and reliability, the DS200TCPDG1ADC Power Distribution Board from General Electric features an innovative design that optimizes power distribution and system monitoring in industrial environments. This cutting-edge module is specifically tailored for seamless integration into the Mark V Series of turbine control systems, ensuring seamless operation and maintenance.

    With a robust capacity to handle up to 1500A of power, this board is capable of managing high-demand industrial processes with ease. Its 36 fused channels provide comprehensive protection against electrical overloads, safeguarding critical components against damage.

    The inclusion of 36 OK LEDs offers an intuitive way for operators to monitor the health of each fuse, enabling quick identification of any issues that may arise. This feature significantly enhances operational efficiency by allowing for prompt corrective actions without interrupting the workflow.

    The DS200TCPDG1ADC is equipped with a single 10-pin connector, facilitating easy connection to other components within the system. Its standard VME board size and panel mounting design ensure compatibility with a wide range of existing setups, minimizing the need for extensive modifications.

    Operating within a temperature range of -40°C to +70°C, this board is engineered to withstand extreme environmental conditions, making it suitable for use in a variety of industrial settings worldwide. Whether you’re dealing with harsh climates or fluctuating working environments, the DS200TCPDG1ADC ensures consistent performance and reliability.

    For businesses seeking to enhance their industrial control systems with state-of-the-art technology, the General Electric DS200TCPDG1ADC Power Distribution Board is an indispensable choice. Its combination of high-power handling capabilities, advanced monitoring features, and versatile compatibility make it a standout solution in the realm of industrial automation.
