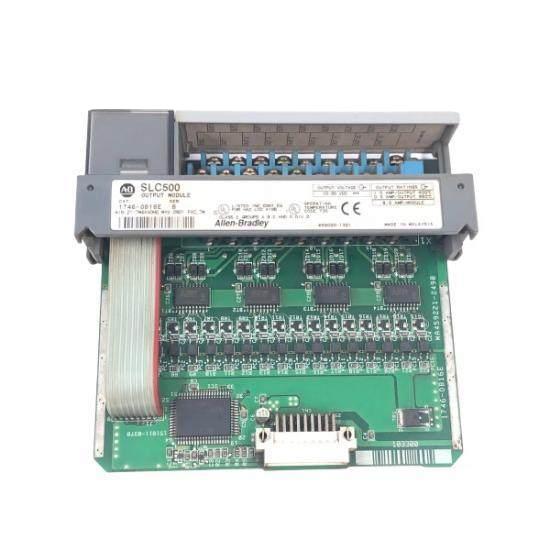

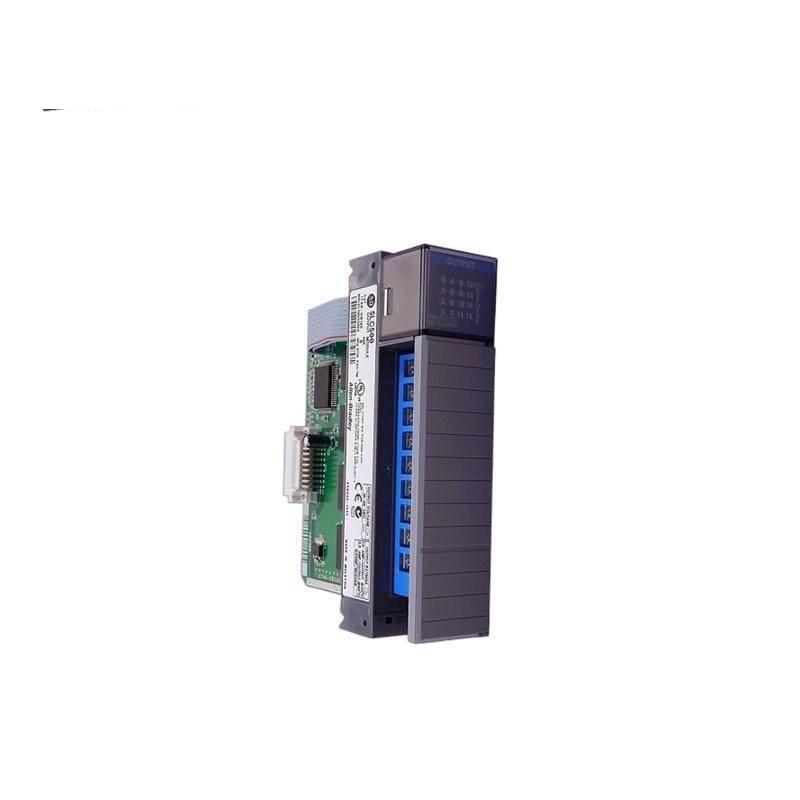

The AB 1746-OB16E Digital Output Module is designed for industrial automation applications, providing reliable digital signal control in various control systems.
home
The AB 1746-OB16E Digital Output Module is designed for industrial automation applications, providing reliable digital signal control in various control systems.
open
close
Manufacturer:Allen Bradley
Model Number:1746-OB16E
Module Type:Digital Output Module
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
The Allen-Bradley 1746-OB16E Digital DC Output Module offers unparalleled reliability and precision for industrial automation projects. Designed with advanced technology, this module ensures consistent performance even under demanding conditions. Its 16-channel configuration allows for versatile integration into existing systems or new installations, providing users with flexibility and scalability.
Key design highlights include robust isolation capabilities, ensuring stable operation in environments with electrical noise. Additionally, the module’s compact open-type enclosure facilitates easy installation and maintenance, while its chassis mounting option simplifies system integration.
With a wide operating temperature range from 0 to 60°C, the 1746-OB16E can withstand harsh industrial settings. The module’s environmental conditions tolerance of 5-95% humidity ensures optimal performance in varying climates. The Allen-Bradley 1746-OB16E Digital DC Output Module is an indispensable tool for any industrial automation project, delivering dependable and efficient solutions.
