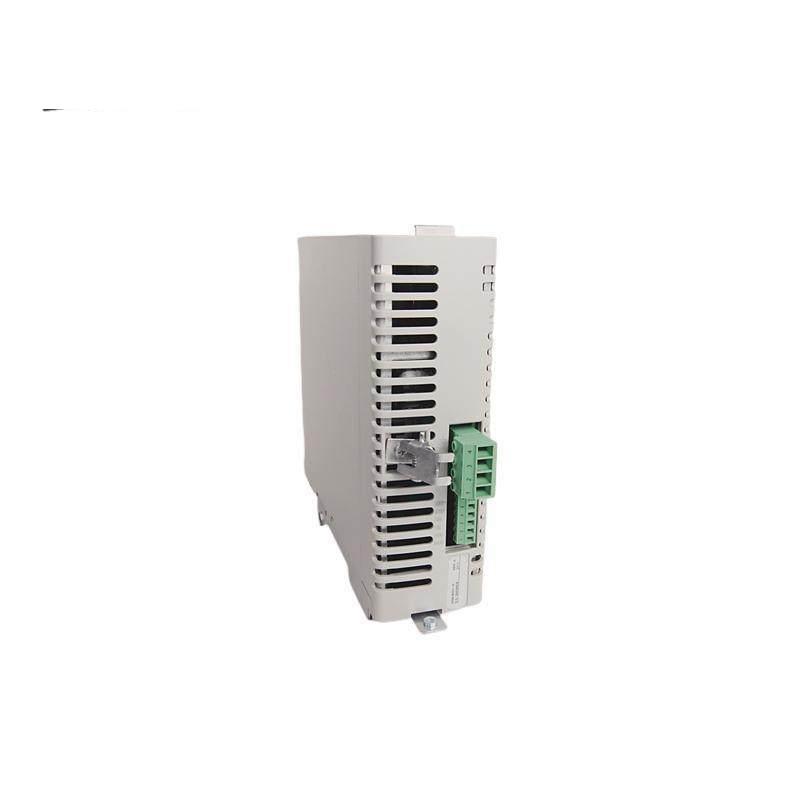

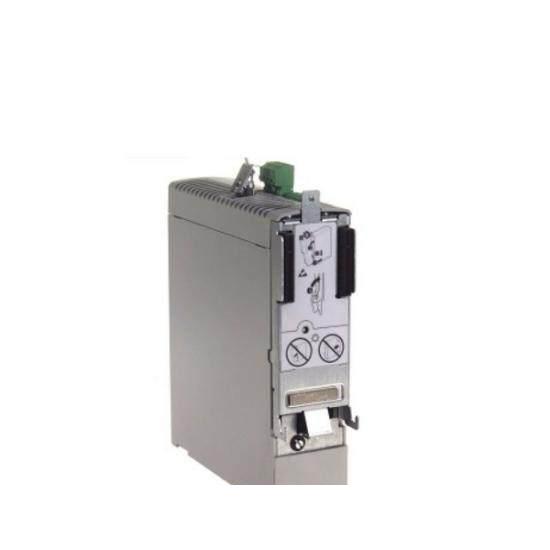

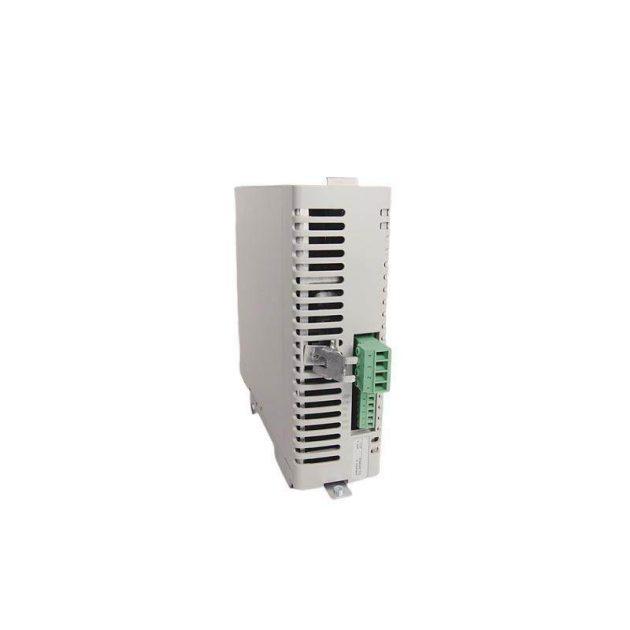

The Allen-Bradley 2094-BM01-S is an advanced axis module designed for use in the Kinetix 6000 Multi-Axis Drive Servo system. It provides efficient and reliable performance with integrated safety features for industrial automation applications.
home
The Allen-Bradley 2094-BM01-S is an advanced axis module designed for use in the Kinetix 6000 Multi-Axis Drive Servo system. It provides efficient and reliable performance with integrated safety features for industrial automation applications.
open
close
Brand:Allen-Bradley
Series:Kinetix 6000
Module Type:Axis Module
Input Voltage:324-528V rms, 3-phase
Nominal Voltage:360 / 480V
Peak Current (RMS):15.3 Amperes
Peak Output Current (0-pk):21.6 Amperes
Continuous Output Power:3.9 kW
Internal Shunt Peak Power:5.6 KW
Internal Shunt Continuous Power:50W
Efficiency:98%
Capacitance:150 µF
Capacitive Rating:200,000 A (rms) symmetrical
PWM Frequency:8 kHz
Velocity Loop Bandwidth Frequency:500 Hz
Current Loop Bandwidth Frequency:1300 Hz
Weight:22.3 lbs (10.1 kg)
Heat Dissipation:57-126 Watts
The Allen-Bradley 2094-BM01-S is a high-performance axis module designed for integration into the Kinetix 6000 Multi-Axis Drive Servo system. It offers exceptional efficiency and reliability, making it ideal for demanding industrial applications. With an integrated Safe Torque Off (STO) feature, this module ensures operator safety by automatically turning off power when necessary. The module’s robust design includes an internal shunt resistor rated at 115 Ohms, which helps in dissipating heat effectively. The built-in capacitors and PWM frequency ensure smooth and precise control over motor operations. Additionally, the module supports a wide range of input voltages and frequencies, allowing for flexible deployment across various industrial environments. Its advanced safety features, including Safe Speed monitoring and Zero Speed detection, provide comprehensive protection for both machinery and personnel. With a continuous output power of 3.9 kW and a peak current of 15.3 Amperes, this module delivers consistent and powerful performance, making it an indispensable component for modern industrial automation systems.
