Number of Channels:4

Analog Signal Range:0…20mA

Accuracy:+/-0.25%

Power Consumption:Max. 50mW

Input Resistance:200Ω

Environmental Temperature:-25°C to +55°C

Operating Frequency:50Hz

Communication Protocol:Modbus RTU/Modbus

Mounting Type:Floor freestanding

Dimension:102x19x45mm

Weight:0.3kg

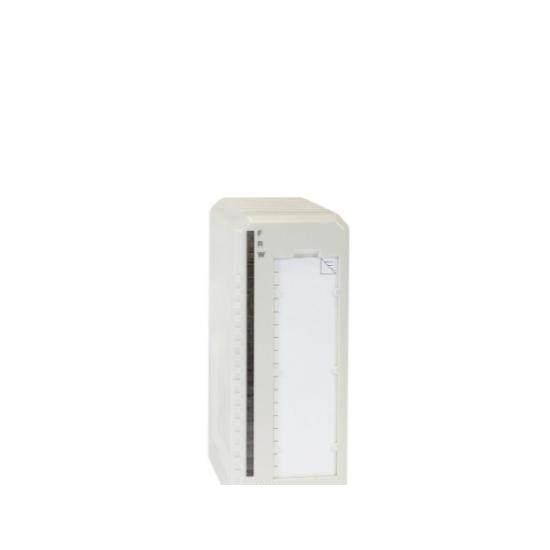

    The ABB AI820 3BSE008544R1 Analog Input Module is engineered to deliver exceptional performance and durability in harsh industrial environments. This module is an integral component of ABB’s PLC system, designed to enhance process control accuracy and reliability.

    Featuring 4 high-precision, 12-bit analog input channels, it supports a wide signal range from -10V to +10V, ensuring accurate measurement across various industrial applications. The galvanically isolated design ensures effective protection against electrical noise and ground loops, safeguarding the integrity of your system.

    With a robust power supply of 12-36V DC, the AI820 3BSE008544R1 can withstand extreme temperatures ranging from -20°C to +60°C, making it suitable for a wide range of industrial settings. Its compact dimensions of 92mm x 20mm x 45mm and lightweight construction facilitate easy installation and integration into existing systems.

    This module is not only highly reliable but also versatile, offering seamless compatibility with ABB’s PLC system and other industry-standard communication protocols. It supports Modbus RTU and Modbus communication, enabling seamless data exchange with other devices in your network.

    Designed with efficiency in mind, the ABB AI820 3BSE008544R1 Analog Input Module is the perfect solution for optimizing industrial processes. Its advanced features, coupled with ABB’s commitment to quality and innovation, make it an indispensable tool for engineers and technicians looking to enhance their automation capabilities.
