The General Electric IS200EGPAG1BCA is a high-performance Gate Pulse Amplifier Board designed for EX2100 Excitation Control systems. It serves as a critical interface controlling the power bridge and managing gate amplifiers that directly regulate SCRs (Silicon Controlled Rectifiers). This board is integral for ensuring optimal performance and reliability in excitation control applications.
WhatsApp
Manufacturer:General Electric (GE)
Model Number:IS200EGPAG1BCA
Series:EX2100
Product Type:Gate Pulse Amplifier Module
Function:Controls the power bridge and manages the SCR conduction feedback
On-board Components:On-board green and red LED indicators
Weight:1lbs 9oz
Dimensions:Not specified in the document, please refer to the original manual for detailed dimensions
Functionality:Interface for conduction feedback along with airflow and temperature monitoring

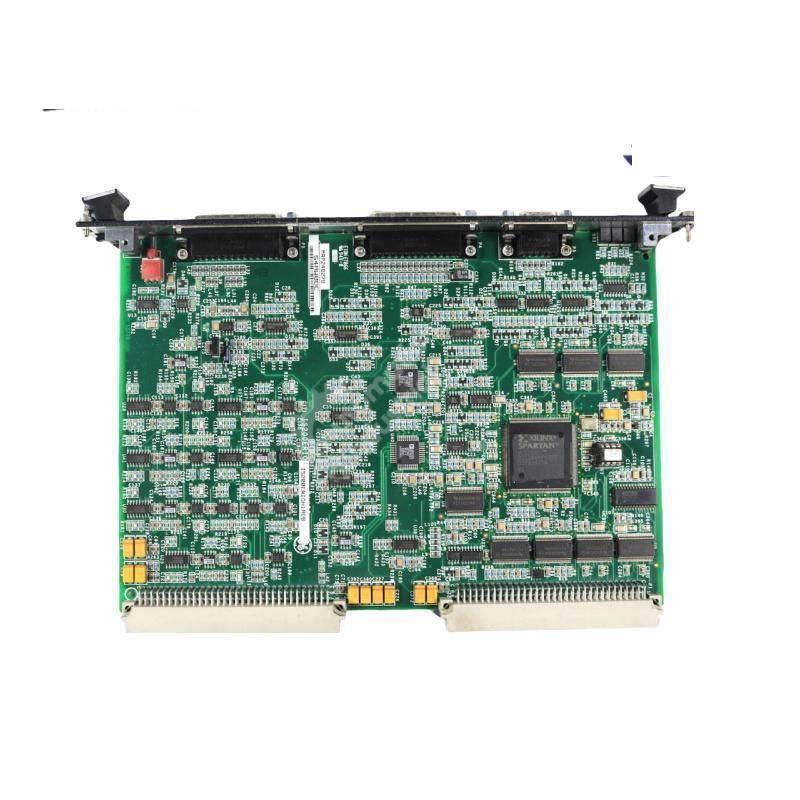

The GE IS200EGPAG1BCA is a high-performance gate pulse amplifier board designed by General Electric specifically for excitation control systems.
This board plays a crucial role in controlling the power bridge within these systems, amplifying gate pulse signals to drive SCRs (Silicon Controlled Rectifiers).
Its design incorporates five on-board jumpers for configurable hardware settings, enhancing its adaptability to various applications.
The board also features on-board green and red LED indicators, providing clear visual feedback on system status.
With precise control over SCRs and the ability to monitor conduction feedback, airflow, and temperature, this amplifier ensures reliable and efficient operation in demanding industrial environments.
Whether used in power generation or other high-stakes industries, the GE IS200EGPAG1BCA is a robust and dependable solution for excitation control systems.
