Operating Voltage:DC 24V

Current Rating:250mA

Number of Channels:8

Switching Speed:5 kHz

Switching Type:Source Output (PNP)

Diagnosis Features:Short-Circuit Protection, Wire Break Detection, Supply Voltage Monitoring

Compatibility:SIEMENS SIMATIC S7-1200/1500 Controllers

Environmental Temperature Range:-25°C to +60°C

Power Consumption:≤1W

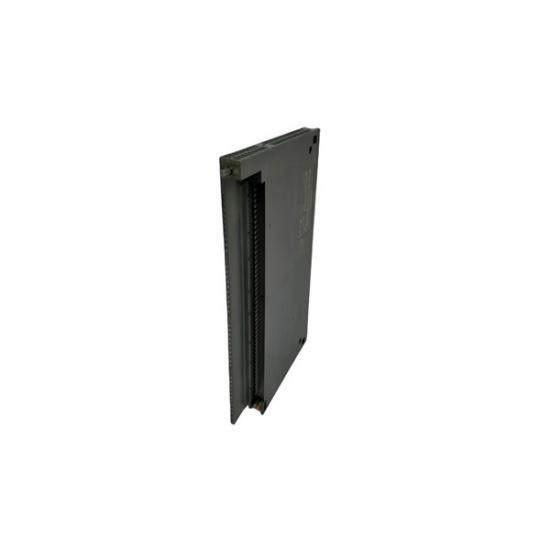

    The SIEMENS 6ES7 422-1BL00-0AA0 Digital Output Module is engineered for seamless integration into the latest SIMATIC ET 200SP system, ensuring optimal performance in a wide range of industrial applications. Designed for reliability and efficiency, this module supports up to eight channels, each capable of handling a current up to 2A at 24V DC, providing precise control over actuators and other devices.

    Featuring a source output design, the module is equipped with advanced diagnostics capabilities, monitoring for common faults such as short circuits, open wires, and voltage supply issues. This proactive approach enhances system uptime and maintenance efficiency, making it a preferred choice for demanding industrial environments.

    Crafted with robust materials to withstand extreme temperature variations (-25°C to +60°C operational, -40°C to +85°C storage), the 6ES7 422-1BL00-0AA0 ensures reliable operation under diverse conditions. Its compact size (88 x 144 x 62 mm) and lightweight (0.1 kg) design facilitate easy installation and integration without compromising on functionality.

    Compliant with international safety standards, this digital output module adheres to stringent quality control measures, guaranteeing consistent performance and durability. It is an essential component for automating processes, enabling efficient control of various industrial machinery and systems.

    With its combination of high reliability, robust design, and advanced diagnostic features, the SIEMENS 6ES7 422-1BL00-0AA0 Digital Output Module is a game-changer in the realm of industrial automation, offering unparalleled precision and control for your manufacturing operations.
