Model:3BHE022291R0101

Module Type:Communications I/O

Manufacture:ABB

Technology:Advanced Microcontroller

Operating Temperature:-25°C to +70°C

Power Consumption:≤ 5W

Communication Protocol:MODBUS RTU, CANopen

Number of Channels:16 Inputs, 16 Outputs

Connection Type:Standardized Pinout

Dimensions (D x H x W):175mm x 35mm x 297mm

Weight:0.6kg

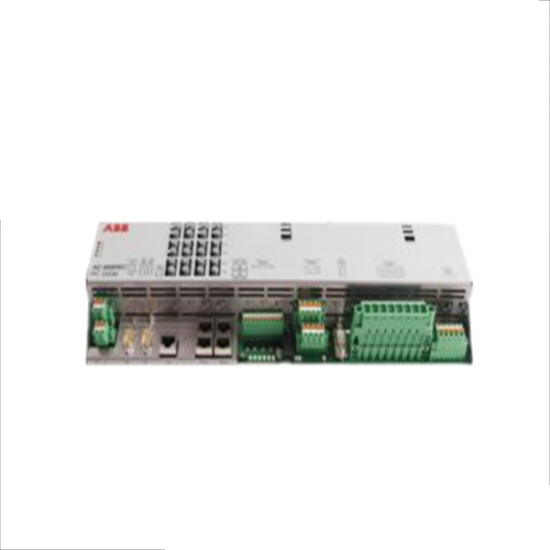

    The ABB PC D230 3BHE022291R0101 Communications I/O Module is a key component in modern industrial automation systems, designed to facilitate real-time communication between various devices and subsystems. Its modular design allows for easy integration into existing systems without the need for extensive customization.

    Equipped with 8 input and 8 output channels, this module supports a wide range of industrial signals, including digital and analog inputs and outputs, making it suitable for diverse control tasks. The module’s Modbus RTU protocol ensures compatibility with a broad spectrum of industrial control systems, enhancing its utility across different industries.

    Featuring an operating voltage of 24V DC and a current consumption of ≤50mA, the module is energy-efficient, reducing operational costs and improving system reliability. The high data transfer rate of up to 19,200 bps ensures swift and accurate data transmission, crucial for dynamic industrial processes.

    Designed for operation within the temperature range of -20°C to +60°C and withstanding relative humidity from 5% to 95% non-condensing, the ABB PC D230 3BHE022291R0101 module is built to withstand harsh industrial environments, ensuring continuous performance even under extreme conditions.

    The spring connectors provide a secure and reliable connection, facilitating quick installation and maintenance without the need for additional tools. This feature, combined with the IP20 front panel enclosure, ensures protection against dust and splashes, enhancing the module’s durability and longevity in industrial settings.
