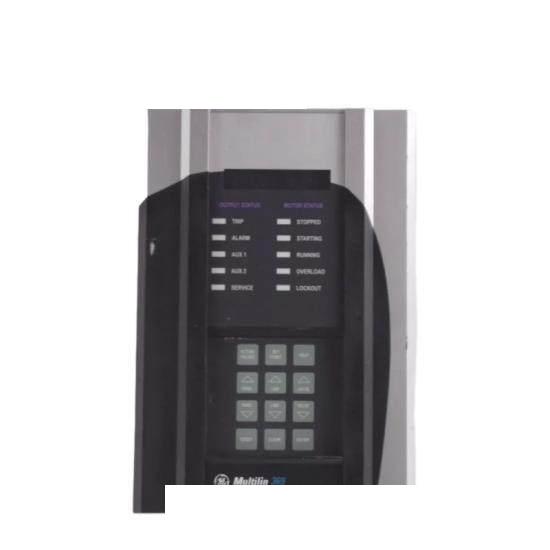

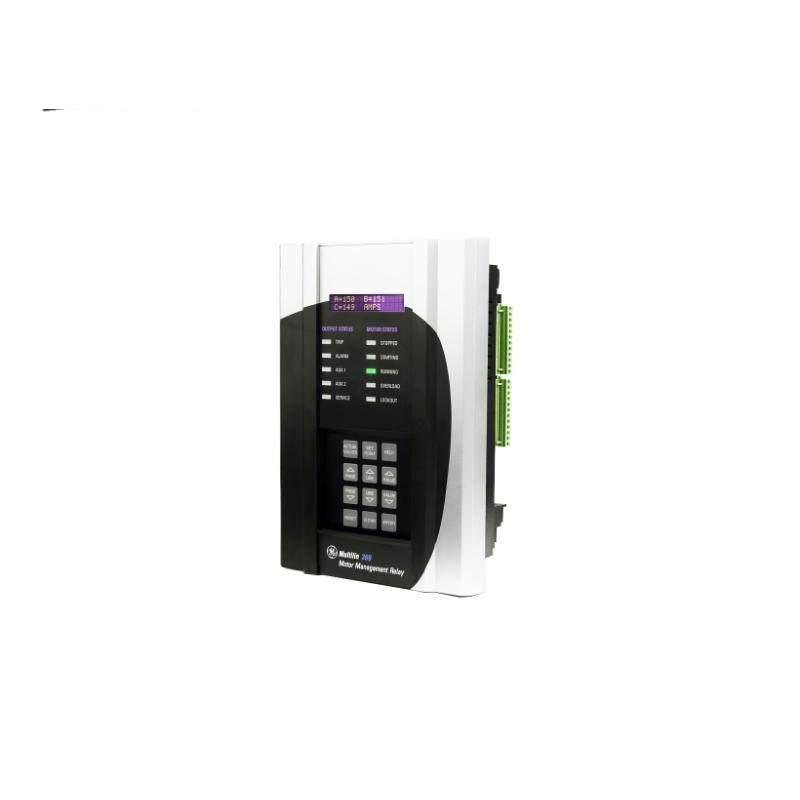

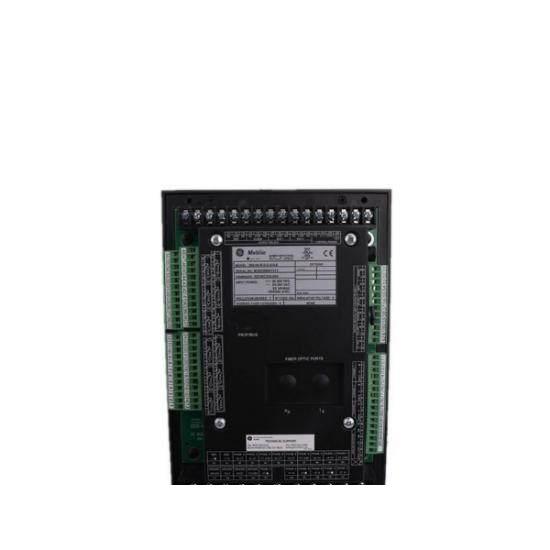

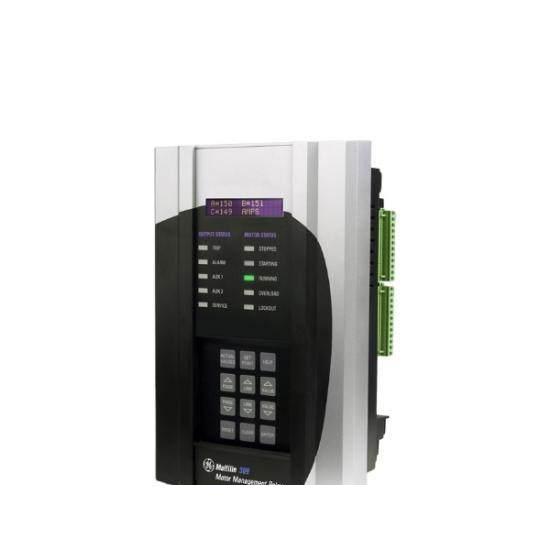

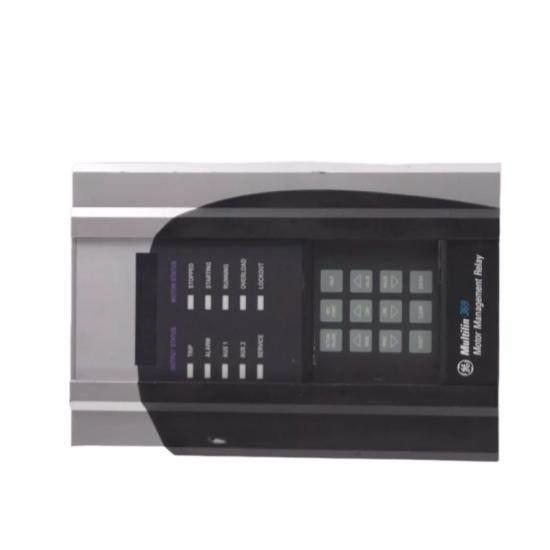

The GE 369-HI-R-0-0-0 Motor Management Relay offers advanced protection and monitoring capabilities for medium to large motors, including features like undervoltage auto-restart, reverse power, starter failure, and more.
home
The GE 369-HI-R-0-0-0 Motor Management Relay offers advanced protection and monitoring capabilities for medium to large motors, including features like undervoltage auto-restart, reverse power, starter failure, and more.
WhatsApp
Control Power Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Differential Switch Time Delay:<200 ms
Dimensions:approx. 29.6cm H x 10.7cm W x 20.5cm L
Insulation Class:I
Phase Current Input:1 A and 5 A secondary
RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper
Weight:approx. 10 lbs
The GE 369-HI-R-0-0-0 Motor Management Relay is a highly advanced solution designed specifically for medium to large motors. It integrates robust protection features such as undervoltage auto-restart, reverse power monitoring, and backspin detection to ensure reliable operation under challenging conditions. This relay also provides critical metering capabilities including kVA demand, kvar demand, and kW demand, allowing operators to monitor energy consumption and optimize efficiency. With its sophisticated design and precise measurements, the 369-HI-R-0-0-0 ensures that your motors operate safely and efficiently. Its compact size and versatile input options make it ideal for a wide range of industrial applications, from manufacturing facilities to power plants. The relay also features a user-friendly interface and intuitive controls, simplifying installation and maintenance. By integrating the 369-HI-R-0-0-0 into your motor management system, you gain peace of mind knowing that your motors are protected and monitored in real-time.
