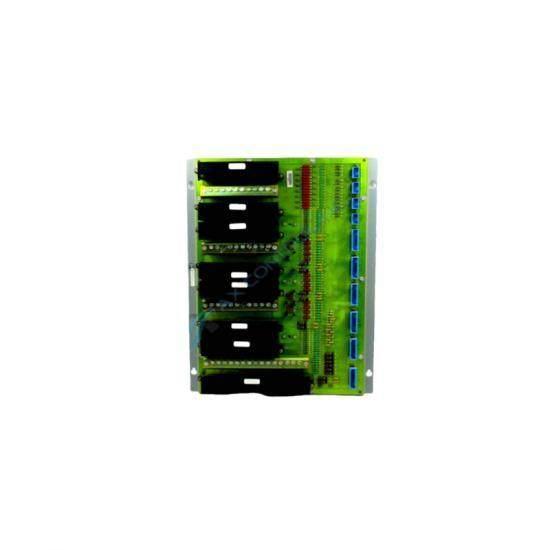

The GE DS3820AIQA1A1A circuit board is designed for seamless integration into industrial control systems, offering robust performance and enhanced system reliability.
home
The GE DS3820AIQA1A1A circuit board is designed for seamless integration into industrial control systems, offering robust performance and enhanced system reliability.
WhatsApp
Product Type:Industrial Control Circuit Board
Brand:General Electric
Model Number:DS3820AIQA
Series:Mark VI
Dimensions:11 x 6 x 6.7 cm
Weight:0.14 kg
Operating Temperature Range:-40°C to +70°C
Storage Temperature Range:-40°C to +85°C
Power Supply Voltage:DC 24V
Communication Interface:RS-485
Screws per Platform:12 on three platforms, 17 on one
Installation Method:Two thin metal edges with screw ports on either side
Integrating advanced technology, the GE DS3820AIQA1A1A circuit board is specifically engineered to withstand the rigors of industrial environments, ensuring reliable operation under extreme conditions.
Featuring an innovative design, this circuit board is equipped with eight large black rectangles, providing ample space for high-density component placement. The inclusion of four metal platforms ensures stability and durability.
Each metal platform supports critical components, with three platforms accommodating twelve metal screws each for secure mounting. The fourth platform has seventeen screws, offering exceptional adaptability to various installation requirements.
Installation is made straightforward with the use of two thin metal edges featuring screw ports on either side, facilitating quick assembly and disassembly.
For optimal performance and longevity, AX Control recommends consulting the original manufacturer’s manual. Our technical support team is available to provide guidance on safety measures and best practices during installation.
