Model:UT350L-00

Type:Limit Controller

Universal Input:Yes

Alarm Outputs:2

Retransmission Output:Included

Communication Interface:RS485 (Optional)

Measuring Value Display:20mm Large LED Display

Setpoint Exceedance Time:Total time counting

Maximum Temperature Retention:Register

Weight:Approx. 1 kg or less

Dimensions:96 (W) x 96 (H) x 100 (D) mm

Mounting:Direct Panel Mounting; Mounting Bracket

Cutout Dimensions:92+0.8 0 (W) x 92+0.8 0 (H) mm

Attitude:Up to 30 degrees above horizontal

Wiring:M3.5 (ISO 3.5 mm) Screw Terminals

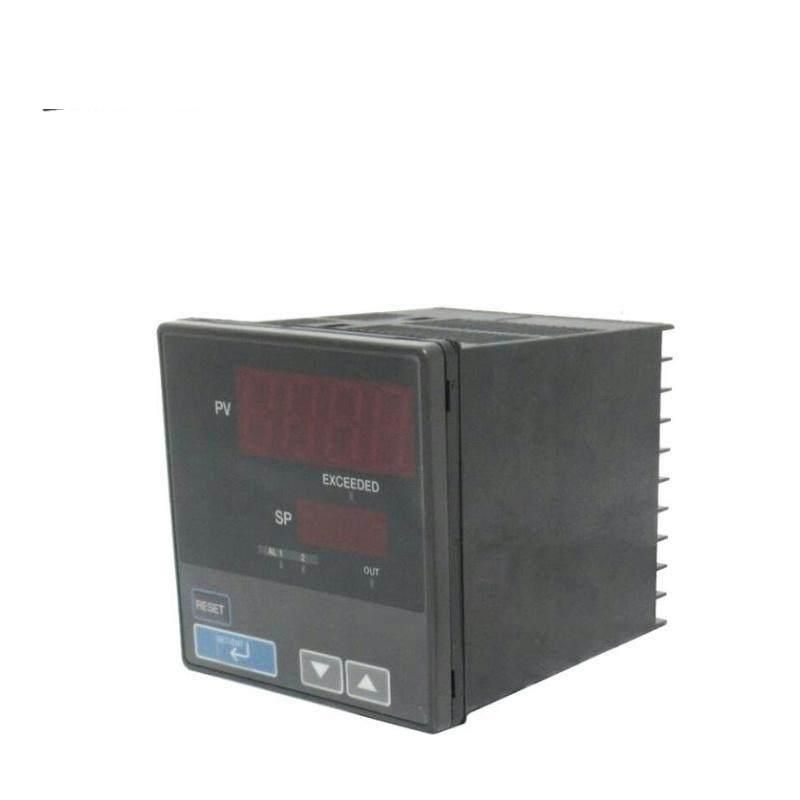

    The Yokogawa UT350L-00 Limit Controller is a precision tool designed for critical industrial environments. It offers a large LED display that is easy to read, even from a distance, making it ideal for applications where visibility is crucial. The controller is equipped with universal input capability, allowing for flexible configuration based on various sensors or transmitters.

    With two alarm outputs, the UT350L-00 ensures timely alerts when operational parameters are exceeded, providing an added layer of safety and control. The retransmission function ensures that critical data is relayed to other systems, maintaining seamless communication within your industrial network.

    For applications requiring historical data tracking, this controller comes with a feature to count the total time the setpoint is exceeded, along with a register to retain the maximum temperature reached, offering valuable insights into operational trends and performance.

    The controller’s robust construction, made of ABS resin and polycarbonate, ensures durability and protection against water ingress, making it suitable for use in environments with stringent IP ratings. It is lightweight and compact, allowing for easy installation and integration into existing setups.

    Yokogawa’s UT350L-00 Limit Controller is equipped with an M3.5 ISO 3.5 mm screw terminal for signal wiring and power/ground connections, ensuring reliable electrical connections and compatibility with a wide range of industrial equipment. This makes it a versatile choice for integrating into diverse industrial automation systems.
