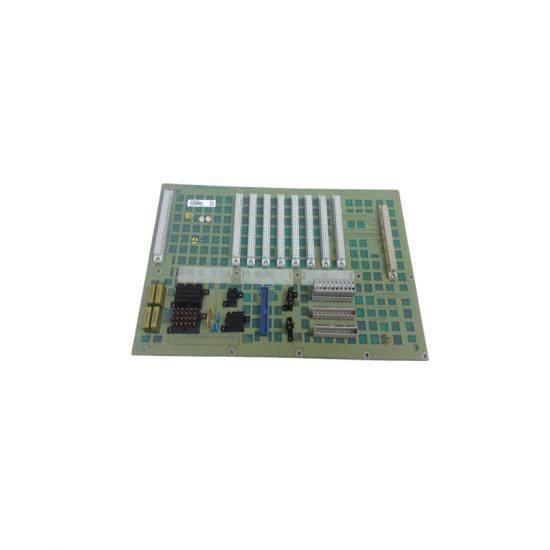

The ABB 3HAA3563-APA Backplane Control Board is designed for high-performance, reliable operation in industrial control systems. It ensures efficient communication and coordination between different components, enhancing system reliability and productivity.
WhatsApp
Operating Voltage:24 VDC
Input Current:0.2 A
Output Current:2.5 A
Communication Protocol:CANopen
Temperature Range:-25°C to +60°C
Board Size:100 x 100 mm
Connection Type:Pin Header
Memory Capacity:16 KB
The ABB 3HAA3563-APA Backplane Control Board is engineered for demanding industrial environments, featuring a robust design that ensures durability and reliability. Its modular architecture allows for easy expansion and customization to fit various system requirements.
This board supports MODBUS RTU communication protocol, enabling seamless data exchange with other devices within the network. The high-speed data transfer rate of 9600 bps ensures efficient and accurate information processing.
With 16 inputs and 16 outputs, the board provides ample connectivity options for sensors, actuators, and other peripheral devices, facilitating comprehensive monitoring and control over industrial processes.
The device operates within a wide temperature range from -20°C to +60°C, making it suitable for both indoor and outdoor applications, including harsh industrial settings. It can also withstand storage temperatures between -40°C to +85°C during transportation or non-operational periods.
Certified by UL, CE, and FCC, the ABB 3HAA3563-APA Backplane Control Board complies with international safety and quality standards, ensuring its compatibility and safety in various global markets.
