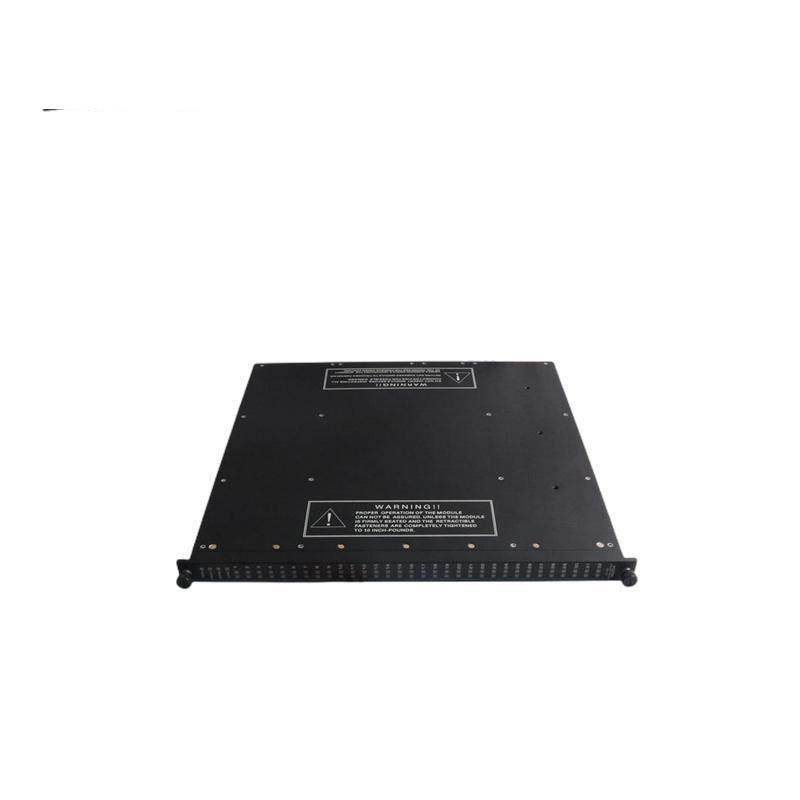

The TRICONEX DO 3401 Output Module is a high-performance digital input designed for industrial automation applications, ensuring reliable and precise control in demanding environments.
home
The TRICONEX DO 3401 Output Module is a high-performance digital input designed for industrial automation applications, ensuring reliable and precise control in demanding environments.
open
close
Operating Voltage:24 VDC
Rated Current:Switching <4.8 A, self-limiting 3.0 A, typical
Nominal Output Voltage:24 VDC
Commoned Points:16
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Degraded Mode Current:> 0.7 A, self-limiting 1.5 A, typical
Field Alarms:[“Loss of field power”,”Output point shorted”]
Loop-back Thresholds:[“0–5 VDC = Off region”,”6–14 VDC = transition region”,”15–30 VDC = On region”]
Leakage to Load:Off
Designed for seamless integration into complex industrial control systems, the TRICONEX DO3401 Output Module ensures reliable operation under various environmental conditions.
Each of the 16 commoned points offers robust switching capabilities, making it suitable for applications requiring high-speed signal processing.
The module’s ability to handle a wide range of operating voltages ensures compatibility with diverse power supplies found in industrial settings.
Equipped with advanced field alarm mechanisms, this module guarantees real-time detection of critical issues, enhancing system reliability and safety.
Its efficient output current management ensures minimal power consumption while maintaining high performance standards.
Crafted from high-quality materials, the TRICONEX DO3401 Output Module boasts durability and long service life, ideal for continuous operation in harsh environments.
