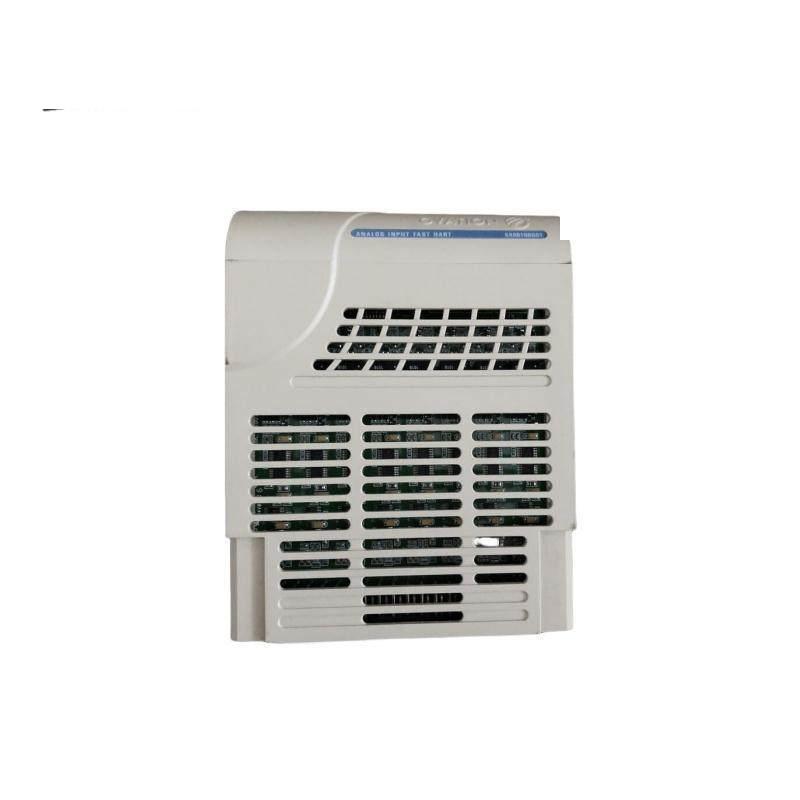

The Emerson Ovation 5X00106G01 is a high-speed HART analog input module designed for precise industrial control systems. It offers seamless data acquisition, ensuring reliable and accurate real-time measurements in demanding environments.
home
The Emerson Ovation 5X00106G01 is a high-speed HART analog input module designed for precise industrial control systems. It offers seamless data acquisition, ensuring reliable and accurate real-time measurements in demanding environments.
open
close
Operating Frequency Range:DC 0.01 Hz to 1 kHz
Analog Input Range:-20 mA to +20 mA
Digital Output Resolution:12 bits
Sampling Rate:1000 samples per second
Communication Protocol:HART
Power Consumption:≤ 3.5 W
Environmental Conditions:Temperature: -40°C to +85°C, Humidity: 5% to 95% non-condensing
The Emerson Ovation 5X00106G01 module boasts a high-speed 1 MHz operating frequency, ensuring rapid and accurate data acquisition even in the most demanding industrial conditions.
Equipped with a 10 kHz sampling rate, this module provides real-time monitoring capabilities, critical for applications requiring quick response times and high precision.
With an impressive analog input range from -10 V to +10 V, it is compatible with a wide variety of sensors and measurement devices, making it versatile for multiple industrial applications.
Featuring a 14-bit Analog-to-Digital Converter (ADC), the module offers exceptional resolution and accuracy, minimizing measurement errors and enhancing system reliability.
Supporting the advanced HART 7 communication protocol, the module facilitates seamless integration with existing HART-enabled devices, enabling efficient setup and diagnostics.
Designed for durability, the Emerson Ovation 5X00106G01 operates reliably within extreme temperature ranges (-40°C to +85°C) and withstands high environmental pressures (up to 100 kPa), ensuring stable performance in harsh environments.
