Type:Pulse Input Module

Model:DFI01

Manufacturer:ABB

Module Category:Automation

Operating Voltage:DC 5V ± 10%

Current Consumption:≤ 15mA

Input Range:0-10 VDC, 0-20 mA

Response Time:≤ 1ms

Relay Output:1 Form C, 24V DC, 50mA

Operating Temperature:-25°C to +60°C

Humidity Range:5% to 95% RH, non-condensing

Enclosure Rating:IP20

Dimensions:146mm x 100mm x 90mm

Weight:0.5kg

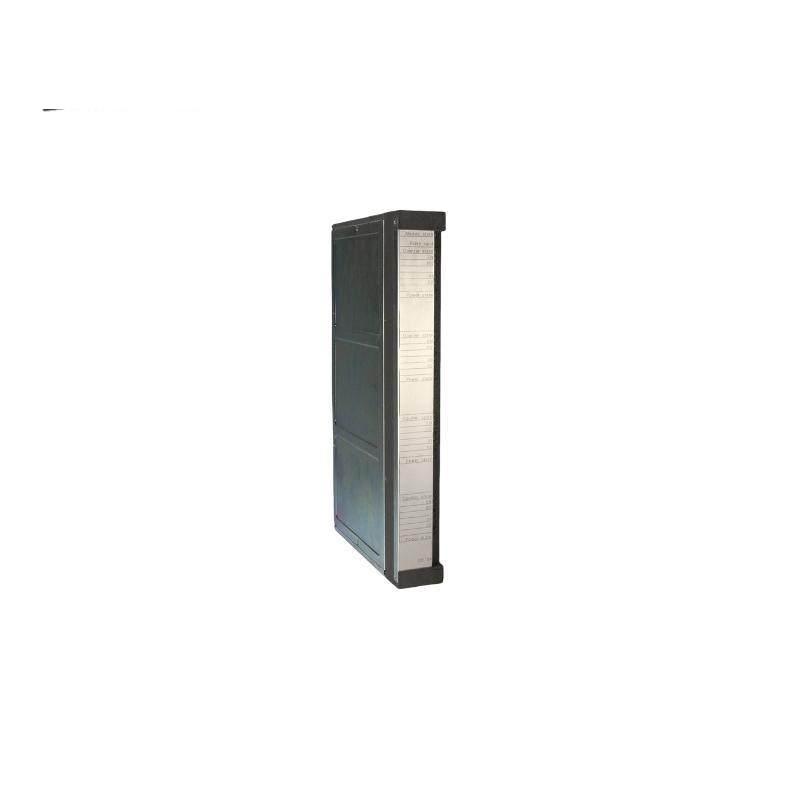

    The ABB DFI01 Pulse Input Module is engineered for applications requiring accurate and consistent pulse data capture in industrial automation scenarios. Its robust design ensures reliability in a wide range of operating conditions, from freezing temperatures to high heat environments.

    Equipped with an advanced signal processing unit, the DFI01 can handle frequencies up to 2 kHz, making it suitable for high-speed events monitoring and control. Its single-channel capability is optimized for precise timing and synchronization needs.

    Featuring a compact and durable enclosure, this module is compatible with industry-standard Profinet communication, facilitating seamless integration with existing automation systems. The inclusion of an on-board LED status indicator provides real-time feedback on operation status, enhancing troubleshooting and maintenance efficiency.

    Designed with ease of use in mind, the ABB DFI01 Pulse Input Module offers straightforward installation and configuration through its intuitive interface. It supports a broad operating voltage range, ensuring compatibility across various power sources commonly found in industrial settings.

    Backed by ABB’s commitment to quality and customer service, the DFI01 comes with comprehensive technical documentation and a warranty period, providing peace of mind for users. It is a critical component for enhancing the precision and efficiency of industrial control systems.
