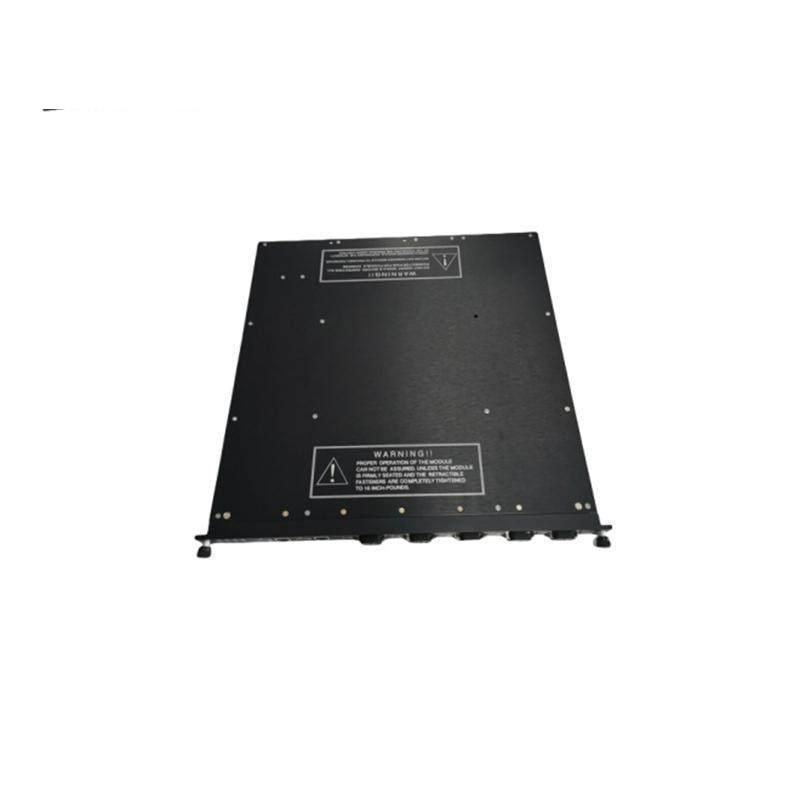

The Invensys Triconex 3700A Analog Input Module is designed for precise and reliable data acquisition in demanding industrial environments, offering superior performance and safety.
home
The Invensys Triconex 3700A Analog Input Module is designed for precise and reliable data acquisition in demanding industrial environments, offering superior performance and safety.
open
close
Model Type:TMR, AI
Number of Input Points:32, differential, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:<.15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB
Integrating advanced technology, the Invensys Triconex 3700A Analog Input Module ensures seamless integration into complex industrial systems, offering unparalleled accuracy and stability.
Featuring a compact design and robust materials, this module is engineered to withstand harsh environments, ensuring long-lasting performance in challenging conditions.
With its high-resolution 12-bit ADC, the Invensys Triconex 3700A can capture subtle changes in input signals, making it ideal for applications requiring precise measurements and control.
Equipped with state-of-the-art isolation technology, the module guarantees reliable signal transmission without interference, even in noisy industrial environments.
The Invensys Triconex 3700A is compatible with a wide range of industry-standard protocols, facilitating easy integration into existing automation systems, thereby enhancing operational efficiency and reducing downtime.
