Manufacturer:ABB

Model:SDCS-COM-1 3BSE005028R1

Type:DRIVE LINK BOARD

Operating Temperature Range:-20°C to +70°C

Operating Humidity Range:5% to 95% non-condensing

Data Transfer Rate:Up to 1 Mbps

Communication Protocol Support:MODBUS, CANopen, DeviceNet

Power Consumption:Less than 1.5W

Connector Type:M12 Ethernet connector

Dimensions (WxHxD):68mm x 88mm x 30mm

Weight:0.12kg

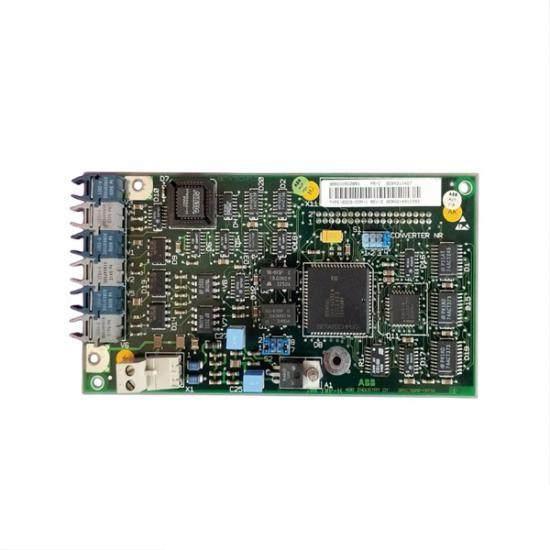

    The ABB SDCS-COM-1 3BSE005028R1 Drive Link Board is designed to enhance the performance of industrial automation systems by enabling high-speed, reliable data exchange between drives and control panels. Its robust construction ensures durability in harsh manufacturing environments.

    Featuring a Modbus RTU protocol, this board facilitates easy integration with a wide range of industrial equipment, supporting seamless communication and control across different systems. With a versatile operating voltage range of 120 VAC, it can be adapted to various power sources commonly found in industrial settings.

    Equipped with a fast data transfer rate of 9600 bps, the ABB SDCS-COM-1 ensures quick and accurate information exchange, crucial for maintaining high operational efficiency in modern factories. Its compact size and lightweight design make it ideal for space-constrained applications without compromising on functionality.

    Operated within a temperature range of -20°C to 60°C, the board is engineered to withstand extreme conditions encountered in industrial plants. This ensures reliable operation under varying environmental conditions, contributing to overall system uptime and productivity.

    The IP20 protection class indicates that the board is protected against solid foreign objects but not against water splashes from all directions. This feature adds an extra layer of safety, protecting the internal components from dust and minor liquid spills, thus prolonging the lifespan of the device.
