Manufacturer:General Electric

Model Number:DS4820A1SB

Part Number:194B5701G6

Relay Type:SPST (Single Pole Single Throw)

Contact Rating:10 A @ 24 VDC

Operating Voltage Range:DC 12V to 28V

Operating Current:Up to 10 A

Switching Speed:1 ms

Contact Form:Silver-plated copper

Temperature Range:-40°C to +70°C

Enclosure Rating:IP20

Mounting:Panel mount

Dimensions:L x W x H: 30 mm x 20 mm x 12 mm

Weight:0.02 kg

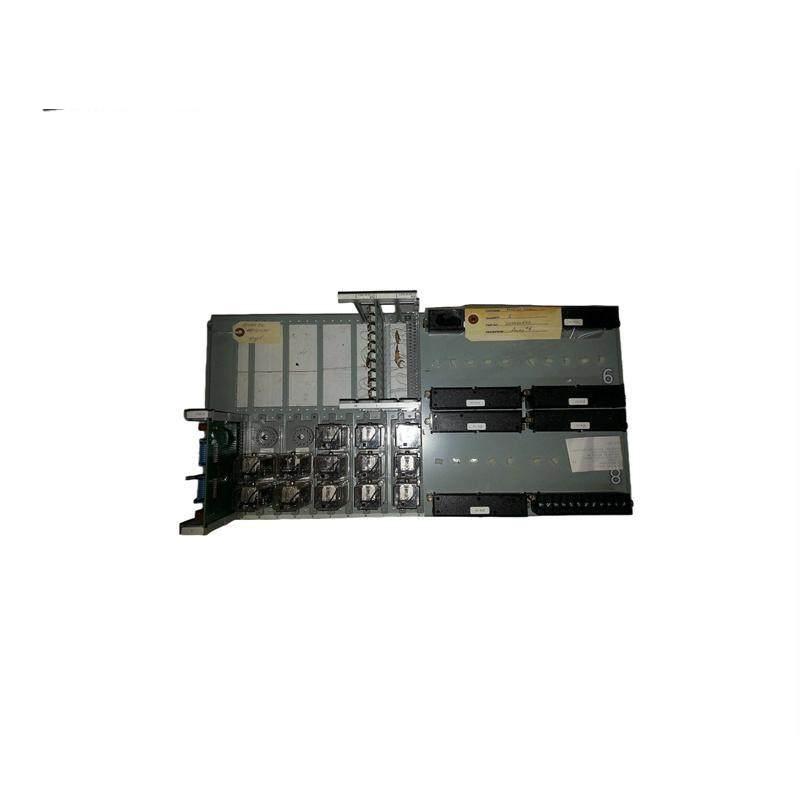

    The GE DS4820A1SB Relay Module (194B5701G6) is a critical component for industrial automation systems, providing reliable and efficient switching capabilities. Its compact design and robust construction make it ideal for space-constrained environments and demanding operational conditions.

    Featuring SPST contacts rated at 10 A at 24 VDC, this relay module ensures a high level of current handling capacity, suitable for a wide range of industrial applications. The silver-plated copper contacts are engineered for extended life and minimal wear, enhancing the overall performance and longevity of the system.

    Operational within an expansive temperature range from -40°C to +70°C, the DS4820A1SB Relay Module ensures consistent functionality regardless of environmental conditions. Its IP20 enclosure rating offers protection against dust and non-hazardous splashing liquids, safeguarding against potential damage in industrial settings.

    The panel-mount design facilitates easy integration into existing control panels, allowing for quick installation and streamlined system assembly. The module’s small footprint minimizes the need for additional space, making it a versatile solution for various applications.

    With its high-speed switching capability of 1 ms, the GE DS4820A1SB Relay Module ensures rapid response times, crucial for applications requiring fast control actions. This feature, combined with its rugged design and broad compatibility, makes it an essential addition to any industrial control system, enhancing efficiency and reliability.
