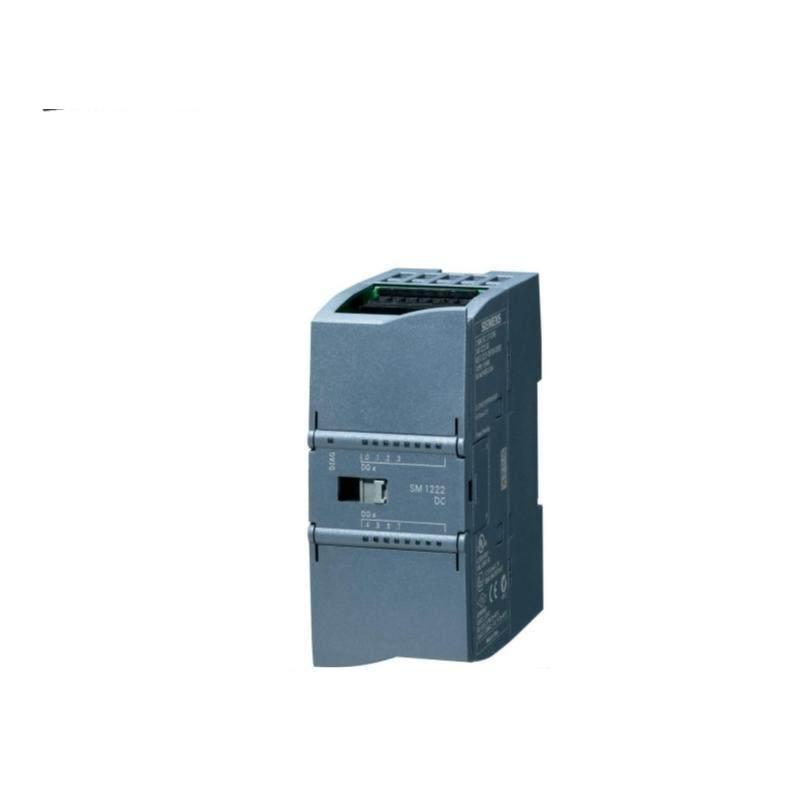

The SIEMENS SIMATIC S7-1200 6ES723-1BH32-0XB0 is a digital input/output (DI/DO) module designed for efficient control and monitoring in industrial automation systems.
home
The SIEMENS SIMATIC S7-1200 6ES723-1BH32-0XB0 is a digital input/output (DI/DO) module designed for efficient control and monitoring in industrial automation systems.
open
close
Type:Digital Input/Output Module
Model:6ES7223-1BH32-0XB0
Manufacturer:Siemens
Dimensions (WxHxD):90mm x 108mm x 56mm
Weight:0.21kg
Power Supply Voltage:24V DC
Input Current (DI):24V DC, Sink/Source
Output Current (DO):Transistor, 0.5A per channel
Number of Inputs:8
Number of Outputs:8
Communication Protocol:RS232 via CM 1241
The SIEMENS S7-1200 Digital I/O Module, 6ES7223-1BH32-0XB0, is engineered to meet the stringent demands of modern industrial environments. With its compact design and high reliability, it serves as an indispensable tool for enhancing system performance.
This module features a total of 8 digital inputs (8 DI) capable of handling 24V DC signals, designed for both sinking and sourcing applications. Its robust input capabilities ensure accurate signal detection, crucial for precise control and monitoring.
Complementing the inputs, the module offers 8 digital outputs (8 DO) driven by transistors rated at 0.5A. These outputs are perfectly suited for driving actuators and relays, enabling the execution of complex control commands with ease.
Operated on a stable 24V DC supply, this module ensures reliable operation under varying industrial conditions. Its compact dimensions (9,00 x 10,80 x 5,60 cm) and lightweight construction (0.21 kg) make it highly portable and easy to integrate into existing systems without compromising on space or functionality.
Designed specifically for SIEMENS PLC Systems, the 6ES7223-1BH32-0XB0 module ensures seamless compatibility and enhanced interoperability within the broader SIEMENS ecosystem, allowing for streamlined integration and management of automation processes.
