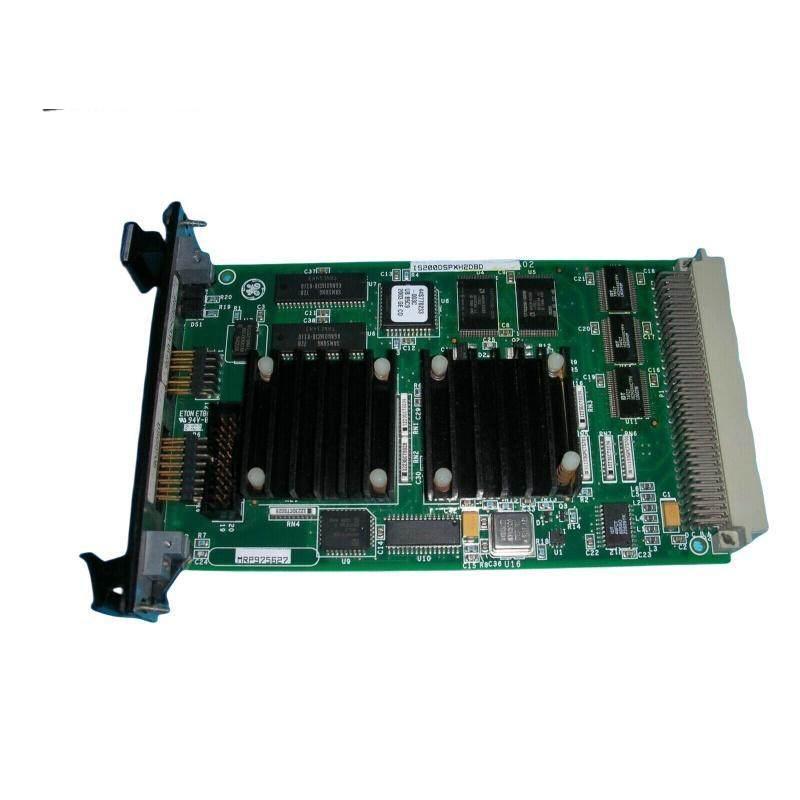

The GE IS200DSPXH2DBD is a specialized digital signal processor control board designed for efficient and precise control in industrial automation systems, ensuring optimal performance and reliability in complex industrial environments.
home
The GE IS200DSPXH2DBD is a specialized digital signal processor control board designed for efficient and precise control in industrial automation systems, ensuring optimal performance and reliability in complex industrial environments.
open
close
Backplane Input Quantity:6
Board Description:Digital Signal Processor Control Board
Board Use Mode:Controller for Motor and Bridge Regulation
Functional Acronym/Abbreviation:DSPX
I/O Connector Quantity:3; P6, P1, and P5
LEDs:2, Status and Fault
Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters
Part-Specific Manual:GEI-100267B
Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus
The GE IS200DSPXH2DBD is a critical component in the advanced Mark VI turbine control systems, engineered to enhance operational efficiency and reliability.
Featuring an extensive array of inputs and outputs (I/O), this board supports complex control algorithms, ensuring precise motor and bridge regulation.
Equipped with onboard firmware, the DSPX control board includes application code, boot loader, and configuration parameters tailored for seamless integration and customization.
The inclusion of two LEDs provides real-time status and fault indications, facilitating quick troubleshooting and maintenance.
Supporting asynchronous TTLs and a high-speed ISBus interface, the IS200DSPXH2DBD ensures reliable data transfer and system communication, essential for the smooth operation of industrial turbine systems.
