The GE IS200DSPXH1DBD is a high-performance digital signal processor control board designed for seamless integration into industrial turbine control systems, ensuring optimal performance and reliability.
home

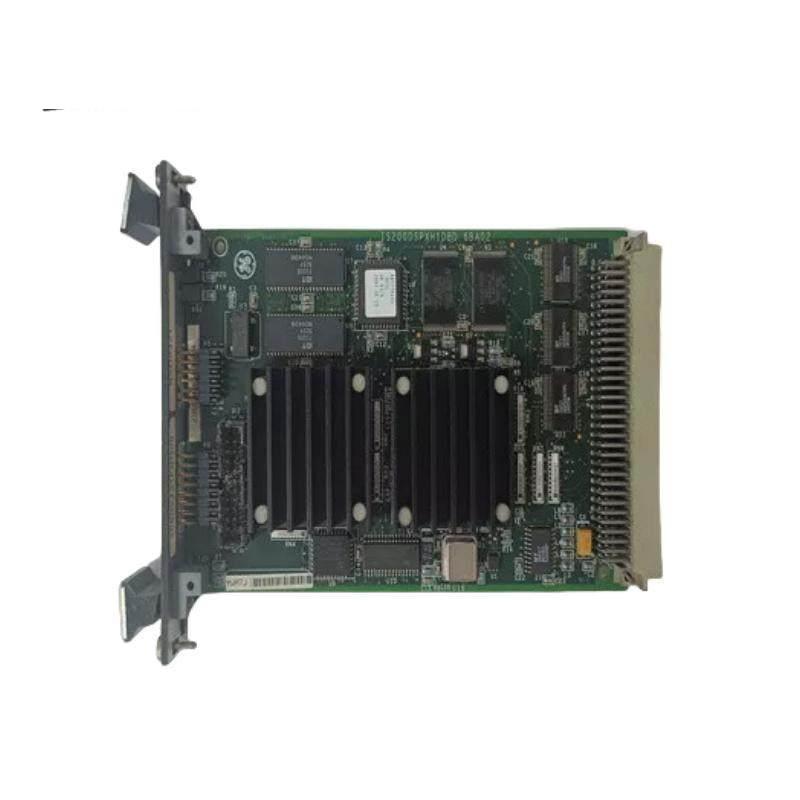

The GE IS200DSPXH1DBD is a high-performance digital signal processor control board designed for seamless integration into industrial turbine control systems, ensuring optimal performance and reliability.
open
close
Backplane Input Quantity:6
Board Description:Digital Signal Processor Control Board
Board Use Mode:Controller for Motor and Bridge Regulation
Functional Acronym/Abbreviation:DSPX
I/O Connector Quantity:3
P6, P1, and P5:Connectors
LEDs:2, Status and Fault Indicators
Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters
Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus
Engineered for the GE Mark VI Speedtronic line, the IS200DSPXH1DBD board serves as a core component in innovation series drives and EX2100 exciters.
Equipped with a digital signal processor and an application-specific integrated circuit (ASIC), it ensures high-performance processing and precise control.
The compact design, measuring as a small rectangular board with an attached front faceplate, facilitates easy integration into existing systems.
Offering a versatile interface with three connectors (P6, P1, and P5), this board supports diverse communication needs, enhancing system flexibility.
Equipped with two LEDs (Status and Fault), the IS200DSPXH1DBD provides real-time feedback on operational status, ensuring proactive maintenance and system reliability.
