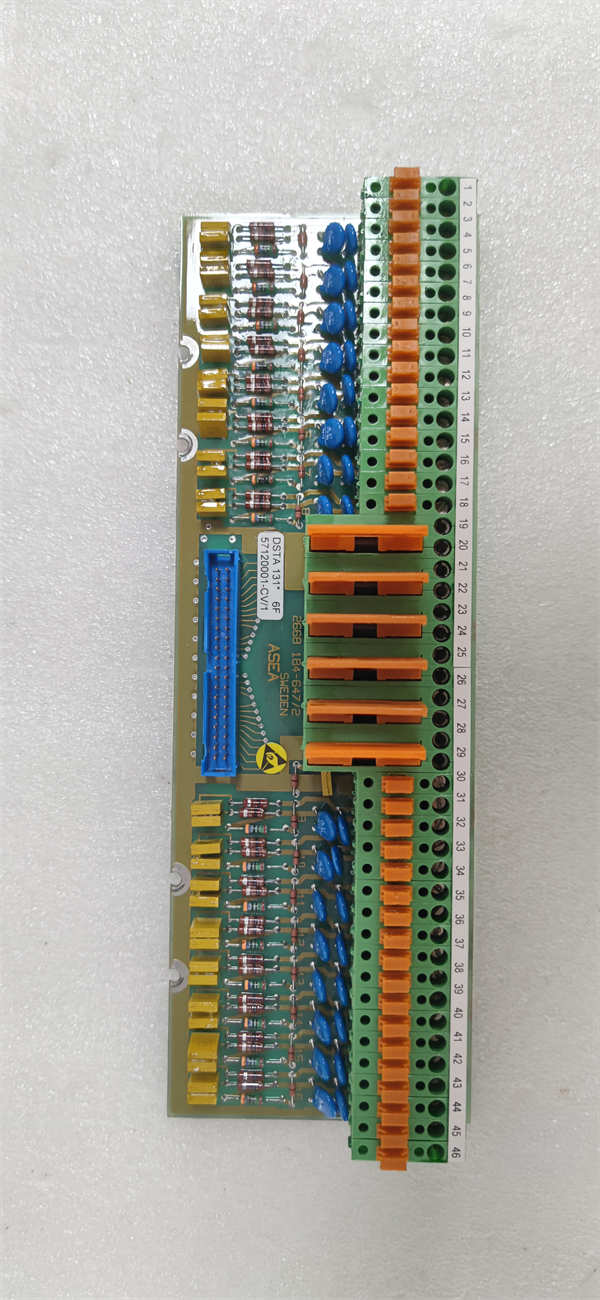

ABB DSTA131
ABB DSTA131 Product Information
Product Overview
DSTA131 is a connection unit launched by ABB, used to connect AI boards and S100 series controllers. It supports 32 analog input and output channels, as well as 16 digital input and output channels.
Product parameters
Model: DSTA131
Series: S100
Connection type: AI board and S100 series controller
Analog I/O points: 32 (16 input/output each)
Number of digital I/O points: 16 (8 input/output each)
Power supply voltage: 24 V DC
Working temperature: -20 ° C to 55 ° C
Protection level: IP20

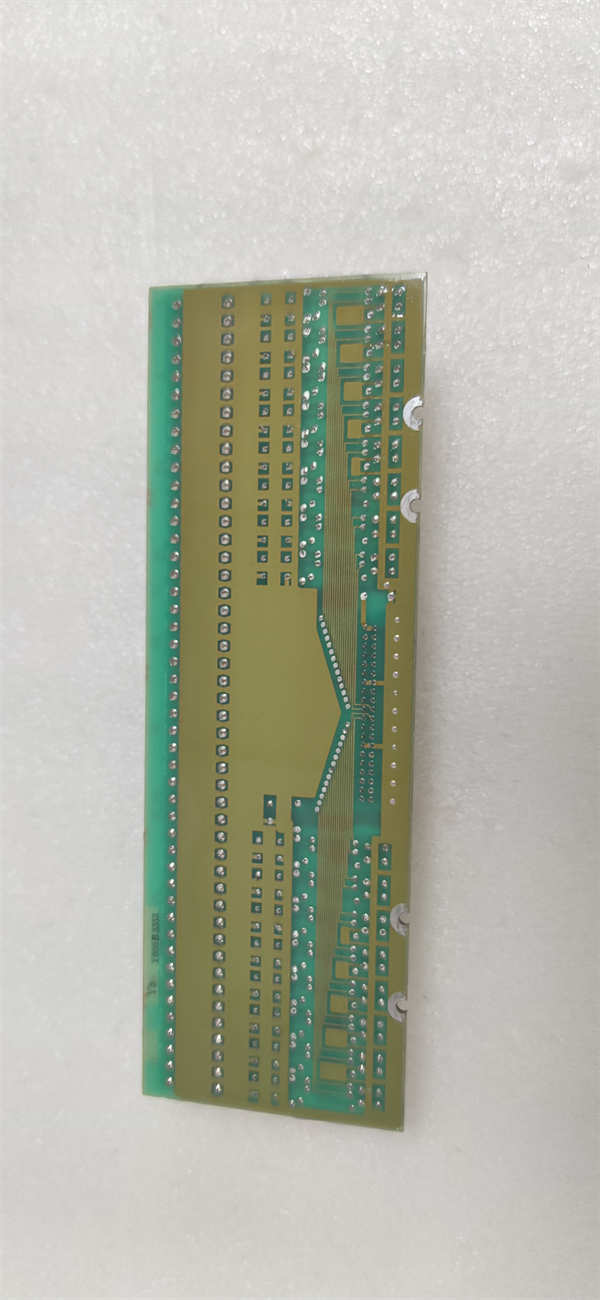

DSTA131
Product specifications
Size: 110mm x 60mm x 30mm
Weight: 0.4 kilograms
Installation method: DIN rail installation
Product Features
High reliability: adopting modular design and building design to ensure reliable operation
Easy to install: Adopting DIN rail installation method, easy to install
Easy: Hot pull, convenient
Product function
DSTA131 demonstrates the implementation of the following functions:
Connect AI board and S100 series controller
Expand analog I/O channels
Expand digital I/O channels
DSTA131
Product Usage
DSTA131 is reported to cover the following areas:
Industrial control: used for motor control, process control, robot control, etc
Building automation: used for HVAC control, lighting control, safety prevention, etc
Data collection: used to collect on-site data and analyze and process it
Application Cases
A certain factory uses DSTA131 to connect AI boards and S100 series controllers, achieving precise control of the production process.
A certain office building uses DSTA131 to connect AI boards and S100 series controllers, achieving intelligent control of HVAC systems.
A laboratory uses DSTA131 to connect AI board and S100 series controller, achieving real-time collection and analysis of experimental data.
