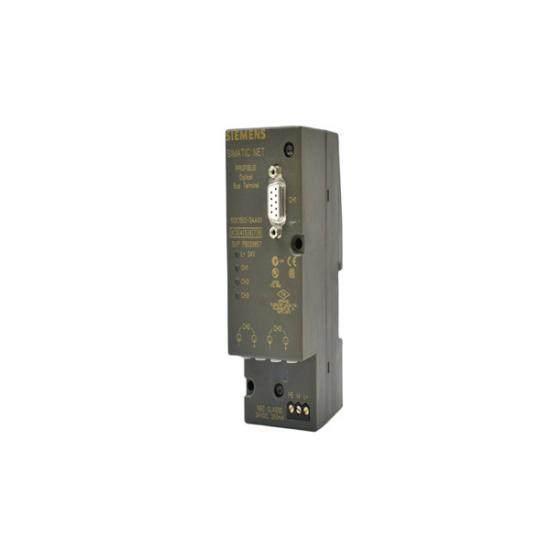

The Siemens 6GK1 500-3AA00 Optical Bus Terminal is a high-performance solution designed for industrial automation systems, enabling efficient and reliable data transmission over long distances using optical fiber technology.

The TRICONEX 2401 DO2401 is a high-reliability digital output module designed for industrial automation systems. It offers robust performance and precise control in various applications, including manufacturing processes, power plants, and other critical infrastructure.

General Parameters:
Model: ACS580-01-039A-4

Rated Power: 18.5 kW (25 HP)

Output Current: 39 A

Supply Voltage: 3-phase, 380–480 V AC (±10%)

Frequency Range: 48–63 Hz

Control Method: Sensorless Vector Control (DTC optional)

Enclosure: IP21 (standard), IP55 (optional)

Cooling Method: Air-cooled

Performance Features:
Speed Range: 1:10 (sensorless), 1:100 (with encoder)

Starting Torque: 150% at 0.5 Hz (sensorless)

Overload Capacity: 110% continuous, 150% for 60 sec

Switching Frequency: Default 4 kHz (adjustable up to 12 kHz)

Input/Output (I/O):
Digital Inputs: 6 (24 V DC, programmable)

Analog Inputs: 2 (0/4–20 mA or 0–10 V)

Relay Outputs: 2 (programmable, 250 V AC/30 V DC)

Analog Output: 1 (0/4–20 mA or 0–10 V)

Communication Options:
Built-in Protocols: Modbus RTU, BACnet MS/TP, Metasys N2

Optional Fieldbus: Profibus DP, Ethernet/IP, Modbus TCP/IP (via add-on modules)

Protection & Safety:
Protections: Overcurrent, overvoltage, undervoltage, motor overload, short circuit, ground fault, etc.

Safety Features: Safe Torque Off (STO) (optional)

Dimensions & Weight:
Width/Height/Depth: ~200 x 380 x 210 mm (varies by enclosure)

Weight: ~10–12 kg (depends on options)
